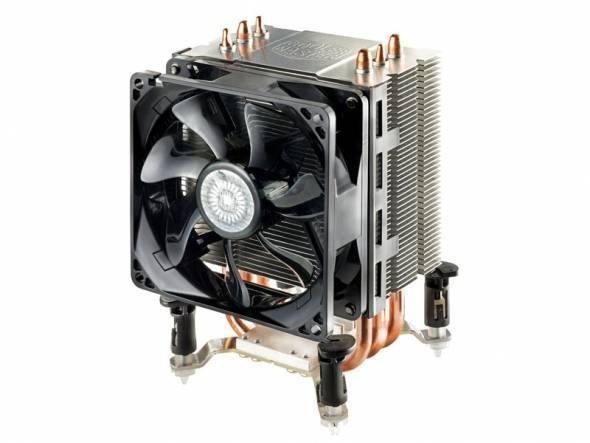

Cooler Master Hyper TX3 EVO Processor 9.2 cm Black, Silver

Name: Cooler Master Hyper TX3 EVO Processor 9.2 cm Black, Silver
Brand: Cooler Master
SKU: RR-TX3E-22PK-R1
Price: 50.15 GBP
Availability: OutOfStock
Rating: 4.86 (1228 reviews)

£50.15 £41.79

Out of stock

SKU

RR-TX3E-22PK-R1

800 - 2200 RPM, 15.7 - 43.1 CFM, 17 - 30 dBA, 12VDC

Product Details

Hyper TX3 EVO The Hyper TX series has evolved along with the requirements of mainstream CPUs. The launch of Hyper TX3 EVO marks another milestone with Cooler Master’s Improved Direct Contact technology, further improving cooling performance.

3 Direct Contact Heat Pipes Aluminum fins with 3 direct contact heat pipes provide excellent heat dissipation.

Dual Fan Design Increase cooling performance by adding an optional second 92mm fan.

92mm PWM Fan with

Quick-snap Fan Bracket Design New 92mm PWM fan with anti-vibration rubber pads and a quick-snap cover for easy fan installation.

Compact Dimensions Excellent airflow design with compact heat sink dimension.

All-in-one Mounting Solution Compatible with Intel® Socket LGA 1366/1156/1155/775 and AMD Socket FM1/AM3+/AM3/AM2+/AM2.

Technical Specification

More Information

SKU

RR-TX3E-22PK-R1

EAN

4719512033487

Specification

Performance
Suitable location	Processor
Rotational speed (min)	800 RPM
Rotational speed (max)	2200 RPM
Noise level (low speed)	17 dB
Noise level (high speed)	30 dB
Number of heat pipes	3
Heat pipes diameter	6 mm
Type	Cooler
Fan diameter	9.2 cm
Supported processor sockets	Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket FM1, Socket FM2, Socket FM2+
Compatible processor series	AMD A, AMD FX™, Intel® Celeron®, Intel® Core™2 Duo, Intel® Core™ 2 Extreme, Intel® Core™2 Quad, Intel® Pentium®, AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom X3, AMD Phenom X4
Minimum airflow (imperial)	15.7 cfm
Maximum airflow	43.1 cfm
Minimum air pressure	0.35 mmH2O
Maximum air pressure	2.63 mmH2O
Design
Number of heat pipes	3
Material	Aluminium
Product colour	Black, Silver
Technical details
Noise level (low speed)	17 dB
Noise level (high speed)	30 dB
Number of heat pipes	3
Heat pipes diameter	6 mm
Type	Cooler
Fan diameter	9.2 cm
Supported processor sockets	Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket FM1, Socket FM2, Socket FM2+
Compatible processor series	AMD A, AMD FX™, Intel® Celeron®, Intel® Core™2 Duo, Intel® Core™ 2 Extreme, Intel® Core™2 Quad, Intel® Pentium®, AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom X3, AMD Phenom X4
Minimum airflow (imperial)	15.7 cfm
Maximum airflow	43.1 cfm
Minimum air pressure	0.35 mmH2O
Maximum air pressure	2.63 mmH2O
Material	Aluminium
Product life	40000 h
Power
Voltage	12 V
Rated current	0.15 A
Power consumption (typical)	1.8 W
Colour
Product colour	Black, Silver
Weight & dimensions
Fan dimensions (W x D x H)	92 x 92 x 25 mm
Package depth	149 mm
Package width	104 mm
Package height	210 mm
Heatsink weight	306 g
Heat pipes diameter	6 mm
Fan weight	73 g
Width	90 mm
Depth	79 mm
Height	136 mm
Weight	386 g
Heatsink dimensions (W x D x H)	90 x 51 x 136 mm
Packaging data
Package depth	149 mm
Package width	104 mm
Package height	210 mm
Other features
Heatsink dimensions (W x D x H)	90 x 51 x 136 mm
Country of origin	China
Product life	40000 h
Harmonized System (HS) code	84733080

Manufacturer

Cooler Master
