| Processor |
|---|
| Processor cache | 8.25 MB |
| Processor frequency | 4.1 GHz |
| Processor model | W-2225 |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| Processor boost frequency | 4.6 GHz |
| Processor cores | 4 |
| Processor family | Intel® Xeon® |
| Memory |
|---|
| Memory layout (slots x size) | 2 x 16 GB |
| Internal memory | 32 GB |
| Maximum internal memory | 512 GB |
| Memory slots | 8x DIMM |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2933 MHz |
| Storage |
|---|
| Storage media | SSD |
| Optical drive type | DVD±RW |
| SSD interface | NVMe, PCI Express |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Total storage capacity | 512 GB |
| SSD form factor | M.2 |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| Graphics |
|---|
| Discrete graphics card | No |
| Discrete graphics card model | Not available |
| Optical drive |
|---|
| Optical drive type | DVD±RW |
| Network |
|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces |
|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| Serial ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Microphone in | Yes |
| Line-out | Yes |
| Line-in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Technical details |
|---|
| Intel 64 | Yes |

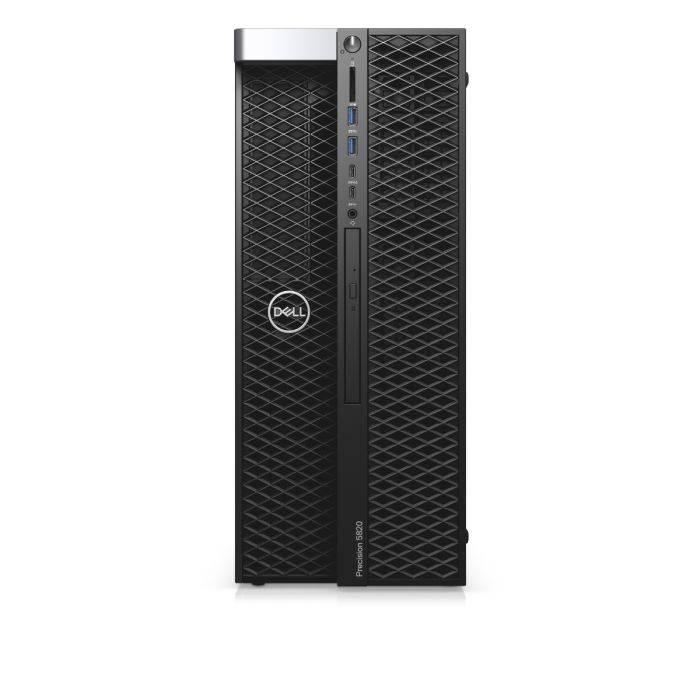

| Product type | Workstation |
| Trusted Platform Module (TPM) | Yes |
| Product colour | Black |
| Chassis type | Tower |
| Audio system | High Definition Audio |
| Placement supported | Vertical |
| Motherboard chipset | Intel® C422 |
| Design |
|---|
| Product colour | Black |
| Chassis type | Tower |
| Placement supported | Vertical |
| Intel® vPro™ Platform Eligibility | Yes |
| Performance |
|---|
| Embedded options available | No |
| Audio chip | Realtek ALC3234 |
| Market positioning | Business |
| Password protection | Yes |
| Product type | Workstation |
| Trusted Platform Module (TPM) | Yes |
| Audio system | High Definition Audio |
| Motherboard chipset | Intel® C422 |
| Harmonized System (HS) code | 84715000 |
| Software |
|---|
| Operating system language | Multilingual |
| Operating system architecture | 64-bit |
| Trial software | Microsoft Office Trial |
| Operating system installed | Windows 10 Pro for Workstations |
| Windows 11 free upgrade | Yes |
| Processor special features |
|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Intel Flex Memory Access | No |
| Intel Software Guard Extensions (Intel SGX) | No |
| Intel Demand Based Switching | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel 64 | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Power |
|---|
| Power supply input frequency | 50 - 60 Hz |
| Power supply input voltage | 100 - 240 V |
| Power supply | 950 W |
| Operational conditions |
|---|
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 8 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 5 - 35 °C |
| Weight & dimensions |
|---|
| Width | 176.5 mm |
| Depth | 518.3 mm |
| Height | 417.9 mm |
| Weight | 15.4 kg |
| Packaging content |
|---|
| Cables included | AC |
| Display included | No |
| Mouse included on selected markets only | Yes |
| Keyboard included on selected markets only | Yes |
| Input device model | KB216, MS116 |
| Other features |
|---|
| Trusted Platform Module (TPM) | Yes |
| Processor manufacturer | Intel |
| Harmonized System (HS) code | 84715000 |
