£619.76 £516.47

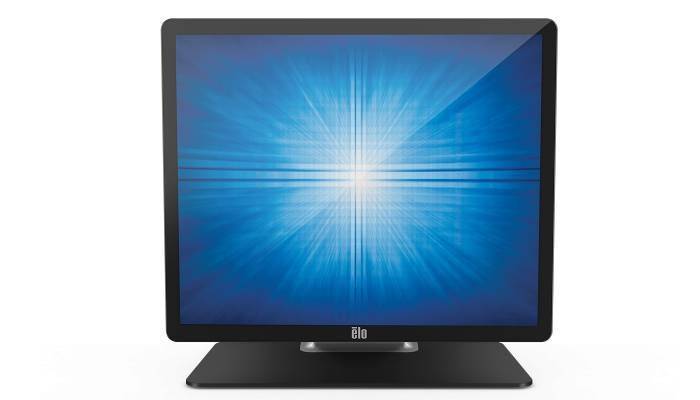

Elo Touch Solution 1902L 19" 1280 x 1024pixels Multi-touch Multi-user Black touch screen monitor E351388

£619.76 £516.47
In stock
SKU

E351388

Need help ordering? Call 0208 200 2000

19" TouchPro PCAP 10 Touch, 1280 x 1024 px, 5:4, 1000:1, 235 cd/m², 2 x 2 W, VGA, HDMI, USB, IPX1
The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.

Brilliant Displays from 19 to 27-inches
The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.

Well-Suited for...
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

Privacy Matters
Optional privacy screens can help provide a physical safeguard for private information or sensitive data from the view of others. Whether you are the employee or the customer, privacy matters.

One for You.
One for Your Customers.Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.

Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.
More Information
SKU E351388
EAN 0815335026393
Specification
Audio
Built-in speaker(s)Yes
RMS rated power4 W
Performance
Built-in speaker(s)Yes
RMS rated power4 W
Mean time between failures (MTBF)50000 h
Built-in cameraNo
AMD FreeSyncNo
NVIDIA G-SYNCNo
Display
Screen shapeFlat
Display number of colours16.78 million colours
Native aspect ratio5:4
Maximum refresh rate60 Hz
Display technologyLCD
Viewing angle, horizontal178°
Viewing angle, vertical178°
Horizontal scan range30 - 82 kHz
Vertical scan range50 - 75 Hz
Aspect ratio5:4
Display resolution1280 x 1024 pixels
Response time14 ms
Display diagonal48.3 cm (19")
Contrast ratio (typical)1000:1
Touchscreen typeMulti-user
TouchscreenYes
Number of simultaneous touchpoints10
Touch technologyMulti-touch
Touchscreen technologyProjected capacitive system
LED backlightYes
Display brightness235 cd/m²
Management features
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian
Multimedia
Built-in speaker(s)Yes
RMS rated power4 W
Built-in cameraNo
Design
Product colourBlack
International Protection (IP) codeIPX1
Mean time between failures (MTBF)50000 h
Camera
Built-in cameraNo
Ports & interfaces
VGA (D-Sub) ports quantity1
HDMI ports quantity1
Headphone outputs1
HDMIYes
Micro-USB ports quantity4
USB 2.0 Type-A ports quantity1
Technical details
Mean time between failures (MTBF)50000 h
HDMIYes
Display viewable area (HxV)374.78 x 299.83 mm
Product colourBlack
Power supply typeAC/DC
Weight (with stand)6.3 kg
Touchscreen typeMulti-user
TouchscreenYes
Number of simultaneous touchpoints10
Ergonomics
VESA mountingYes
Panel mounting interface100 x 100 mm
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian
Power
Power supply typeAC/DC
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (standby)0.8 W
Power consumption (typical)18 W
Power consumption (off)0.4 W
Voltage tolerance5%
AC adapter output voltage12 V
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 95%
Packaging content
Quick start guideYes
Cables includedAC, Audio (3.5mm), HDMI, USB, VGA
Weight & dimensions
Width (with stand)429.6 mm
Depth (with stand)193.4 mm
Height (with stand)397.7 mm
Weight (with stand)6.3 kg
Weight (without stand)4.3 kg
Package width527 mm
Package depth260 mm
Package height482 mm
Package weight9.8 kg
Packaging data
Package width527 mm
Package depth260 mm
Package height482 mm
Package weight9.8 kg
Quick start guideYes
Cables includedAC, Audio (3.5mm), HDMI, USB, VGA
Logistics data
Harmonized System (HS) code85285210
Other features
Quick start guideYes
HDMIYes
Power supply typeAC/DC
Dimensions (W x D x H) with stand429.6 x 193.4 x 397.7 mm
Mean time between failures (MTBF)50000 h
Display viewable area (HxV)374.78 x 299.83 mm
Touchscreen typeMulti-user
TouchscreenYes
Number of simultaneous touchpoints10
Manufacturer Elo Touch Solutions
