£564.62 £470.51

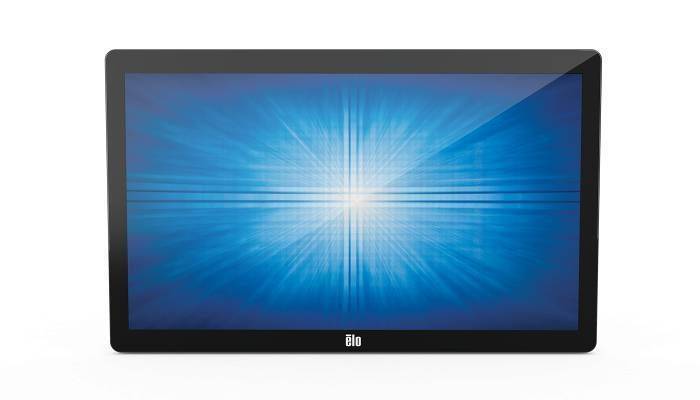

Elo Touch Solution 2402L touch screen monitor 60.5 cm (23.8IN) 1920 x 1080 pixels Black Multi-touch Tabletop E126288

£564.62 £470.52
Out of stock
SKU

E126288

23.8", TFT LCD, 1920 x 1080, PCAP, 16:9, 1000:1, 15 ms, 2 x 2 W, VGA, HDMI, USB, Black
The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.

Brilliant Displays from 19 to 27-inches
The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.

Well-Suited for...
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

One for You
One for Your Customers.Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.

Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.

Built-to-Last
The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build and are responsible for the complete solution,with touch integrated from the start.
More Information
SKU E126288
EAN 0843173124100
Specification
Ports & interfaces
USB 2.0 ports quantity1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
Headphone outputs1
HDMIYes
Micro-USB ports quantity4
Audio
Built-in speaker(s)Yes
RMS rated power4 W
Performance
Built-in speaker(s)Yes
RMS rated power4 W
Mean time between failures (MTBF)50000 h
Built-in cameraNo
AMD FreeSyncNo
NVIDIA G-SYNCNo
Display
Screen shapeFlat
Display number of colours16.78 million colours
Native aspect ratio16:9
Maximum refresh rate60 Hz
HD typeFull HD
Display technologyLCD
Viewing angle, horizontal178°
Viewing angle, vertical178°
Digital horizontal frequency30 - 82 kHz
Digital vertical frequency50 - 75 Hz
Supported graphics resolutions640 x 400, 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1366 х 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Display resolution1920 x 1080 pixels
Response time15 ms
Display diagonal60.5 cm (23.8")
Contrast ratio (typical)1000:1
Touchscreen typeTabletop
TouchscreenYes
Number of simultaneous touchpoints10
Panel typeTFT
Touch technologyMulti-touch
Touchscreen technologyProjected capacitive system
LED backlightYes
Display brightness250 cd/m²
Management features
Number of OSD languages10
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian
Multimedia
Number of speakers2
Built-in speaker(s)Yes
RMS rated power4 W
Built-in cameraNo
Design
CertificationCanada (CUL,IC), China CCC, Europe CE, Korea KCC, Taiwan BSMI, United States (FCC,UL), Japan VCC, Internationa lCB, Australia RCM, Russia EAC, Mexico CoC
Product colourBlack
International Protection (IP) codeIPX1
Mean time between failures (MTBF)50000 h
Camera
Built-in cameraNo
Technical details
Height (without stand)33.7 cm
Depth (without stand)4.28 cm
Width (without stand)57.5 cm
Mean time between failures (MTBF)50000 h
HDMIYes
Display viewable area (HxV)527.04 x 296.46 mm
Product colourBlack
Power supply typeAC/DC
USB 2.0 ports quantity1
Touchscreen typeTabletop
TouchscreenYes
Number of simultaneous touchpoints10
Ergonomics
VESA mountingYes
Panel mounting interface75 x 75,100 x 100 mm
Number of OSD languages10
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian
Power
Power supply typeAC/DC
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power consumption (standby)0.33 W
Power consumption (typical)25.5 W
Power consumption (off)0.27 W
AC adapter output voltage12 V
Operational conditions
Non-operating altitude0 - 12.192 m
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 95%
Operating altitude0 - 3.048 m
Packaging content
Stand includedNo
Quick start guideYes
Cables includedAC, Audio (3.5mm), HDMI, USB, VGA
AC adapter includedYes
Weight & dimensions
Height (without stand)33.7 cm
Depth (without stand)4.28 cm
Width (without stand)57.5 cm
Weight (without stand)5.42 kg
Package width680 mm
Package depth169 mm
Package height460 mm
Package weight7.54 kg
Packaging data
Package width680 mm
Package depth169 mm
Package height460 mm
Package weight7.54 kg
Stand includedNo
AC adapter includedYes
Quick start guideYes
Cables includedAC, Audio (3.5mm), HDMI, USB, VGA
Logistics data
Harmonized System (HS) code85285210
Other features
Height (without stand)33.7 cm
Depth (without stand)4.28 cm
Width (without stand)57.5 cm
Quick start guideYes
HDMIYes
Power supply typeAC/DC
USB 2.0 ports quantity1
AC adapter includedYes
Mean time between failures (MTBF)50000 h
Display viewable area (HxV)527.04 x 296.46 mm
Touchscreen typeTabletop
TouchscreenYes
Number of simultaneous touchpoints10
Certificates
CertificationCanada (CUL,IC), China CCC, Europe CE, Korea KCC, Taiwan BSMI, United States (FCC,UL), Japan VCC, Internationa lCB, Australia RCM, Russia EAC, Mexico CoC
Manufacturer Elo Touch Solutions
