£603.85 £503.20

Elo Touch Solutions 2794L 68.6 cm (27") 1920 x 1080 pixels Multi-touch Black E493591

£603.85 £503.21
In stock
SKU

E493591

Need help ordering? Call 0208 200 2000

27", 1920x1080 50, 60Hz, 270 nits, 10-touch

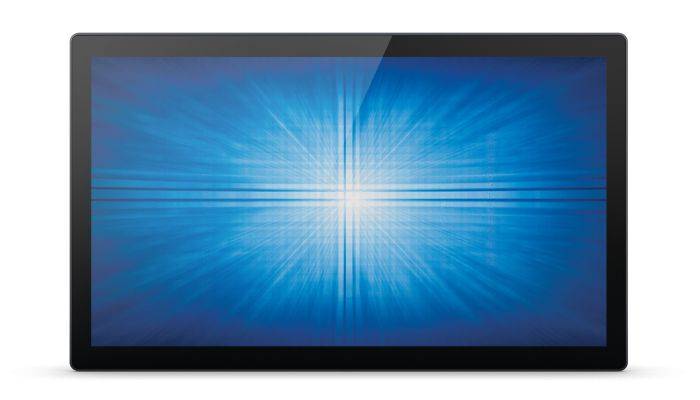

Elo 2794L Open Frame Touchscreen Display
The Elo 2794L 27-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.

Enabling Partners to Build Smarter Kiosks
With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.

Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait, and face-up orientations providing optimal flexibility for mounting in any table, kiosk, or cabinet design. Whether viewing directly, at an angle, or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.

Touch Thru Glass. Enabled with PCAP
Our TouchPro® PCAP technology supports touch thru functionality for installations that require a front layer of glass with thickness’s up to 6mm or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines.

Built for Commercial Use
We pride ourselves on being one of the best manufacturers in the market – We design and build the complete solution, with touch integrated from the start. Our robust touchscreen solutions offer flexibility for diverse environments and have undergone rigorous testing to ensure the longest life possible for our product - maximizing your ROI.
More Information
SKU E493591
EAN 0843173131214
Specification
Ports & interfaces
USB 2.0 ports quantity1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DisplayPorts quantity1
HDMIYes
HDMI version1.3a
DisplayPort version1.1a
Ethernet LAN (RJ-45) ports1
Performance
Mean time between failures (MTBF)50000 h
Built-in cameraNo
AMD FreeSyncNo
NVIDIA G-SYNCNo
Display
Screen shapeFlat
Display number of colours16.78 million colours
Native aspect ratio16:9
Maximum refresh rate65 Hz
HD typeFull HD
Display technologyLCD
Viewing angle, horizontal178°
Viewing angle, vertical178°
Viewable size, horizontal59.8 cm
Viewable size, vertical33.6 cm
Digital horizontal frequency30 - 82 kHz
Digital vertical frequency50 - 75 Hz
Backlight typeLED
Display resolution1920 x 1080 pixels
Response time12 ms
Display diagonal68.6 cm (27")
Contrast ratio (typical)3000:1
TouchscreenYes
Number of simultaneous touchpoints10
Panel typeTFT
Touch technologyMulti-touch
Touchscreen technologyProjected capacitive system
LED backlightYes
Display brightness270 cd/m²
Management features
On Screen Display (OSD)Yes
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Network
Ethernet LAN (RJ-45) ports1
Multimedia
Built-in cameraNo
Design
Product colourBlack
Mean time between failures (MTBF)50000 h
Camera
Built-in cameraNo
Technical details
Height (without stand)4.06 cm
Depth (without stand)38.8 cm
Width (without stand)64.4 cm
Mean time between failures (MTBF)50000 h
HDMIYes
Display viewable area (HxV)597.6 x 336.15 mm
Product colourBlack
Sustainability certificatesRoHS
Power supply typeDC
USB 2.0 ports quantity1
TouchscreenYes
Number of simultaneous touchpoints10
Ergonomics
Wall mountableYes
VESA mountingYes
On Screen Display (OSD)Yes
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Power
Power supply typeDC
Power consumption (max)27 W
Power consumption (typical)21 W
Power consumption (off)0.5 W
Energy efficiency scaleA to G
Energy efficiency class (SDR)G
Energy consumption (SDR) per 1000 hours30 kWh
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 95%
Packaging content
Cables includedHDMI, USB, VGA
Weight & dimensions
Height (without stand)4.06 cm
Depth (without stand)38.8 cm
Width (without stand)64.4 cm
Weight (without stand)7.3 kg
Package width782 mm
Package depth200 mm
Package height530 mm
Package weight10.2 kg
Packaging data
Package width782 mm
Package depth200 mm
Package height530 mm
Package weight10.2 kg
Cables includedHDMI, USB, VGA
Sustainability
Sustainability certificatesRoHS
Logistics data
Harmonized System (HS) code85285210
Other features
Height (without stand)4.06 cm
Depth (without stand)38.8 cm
Width (without stand)64.4 cm
Power consumption (max)27 W
HDMIYes
Energy efficiency scaleA to G
Power supply typeDC
USB 2.0 ports quantity1
Mean time between failures (MTBF)50000 h
Display viewable area (HxV)597.6 x 336.15 mm
Connection to PCYes
Ethernet LAN (RJ-45) ports1
TouchscreenYes
Number of simultaneous touchpoints10
Manufacturer Elo Touch Solutions
