£1061.74 £884.79

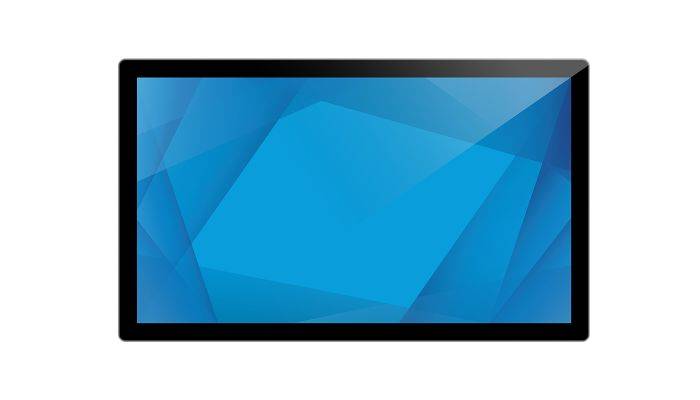

Elo Touch Solutions 3203L E720061 80cm 31.5IN Touch 1920 x 1080 pixels Full HD LED

£1,061.75 £884.79
Out of stock
SKU

E720061

31.5'', 1920x1080, 16:9, TouchPro PCAP, 8 ms, HDMI, USB, DP, TRS, RJ-45, HDCP, RMS 2x 5W, 764.7x459.1x57.2 mm
Elo's 32-inch touchscreen display provides a brilliant canvas for adding interactivity to any environment. Perfect for everything from endless aisle and brand experiences to menu boards, collaborative meetings and dashboarding, the 3203L offers a sleek, slim design built to withstand the rigors of continuous commercial use. And with Elo’s computer modules, you can easily turn the display into a powerful, all-in-one, life-size tablet. Enabling up to 40 touches with fast and extremely sensitive response time and anti-friction glass to minimize heat as fingertips drag across the screen, Elo’s 3203L with industry leading TouchPro PCAP technology is designed with the user in mind. And with touch thru capability, the interactive display can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.

Collaboration for All Environments
Purpose-built to make collaboration easy – simply add the Huddle Kit with the 3203L Interactive Display to enable seamless meetings and heightened teamwork with the effectiveness of an in person meeting. Start driving concepts and innovation beyond what a phone call, projector or whiteboard and dry erase marker once did.

Elo Edge Connect Lets You do More
Expand your touchscreen’s potential by adding a payment device, barcode scanner, camera, NFC/RFID or one of our many other accessories. With the Elo Edge Connect system, accessories snap on to the edge of the touchscreen for a clean design and extended functionality.

Add Windows Computing Power with Ease
The commercial-grade computer module transforms Elo's touchscreen into a powerful, all-in-one, touch computer platform. Running Intel Core 7th-Generation CPUs and enhanced graphics engine, the ECMG4s make field installation and maintenance easy with no external cables required.

Android – Scalability Simplified With the Elo Backpack, an Android-powered compute engine, you can transform any Elo touchscreen into a scalable and powerful media platform. Powered by EloView, content-delivery and remote-management of your entire network has never been easier. The low-power, solid-state, fan-less computing solution offers everything needed in an affordable, compact design.
More Information
SKU E720061
EAN 0843173109923
Specification
Display
HDCPYes
Screen shapeFlat
Display number of colours16.78 million colours
Native aspect ratio16:9
Maximum refresh rate60 Hz
HD typeFull HD
Display technologyLED
Viewing angle, horizontal178°
Viewing angle, vertical178°
Horizontal scan range30 - 135 kHz
Vertical scan range24 - 64 Hz
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 960, 1366 х 768, 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Display resolution1920 x 1080 pixels
Response time8 ms
Display diagonal80 cm (31.5")
Contrast ratio (typical)3000:1
Touchscreen typeMulti-user
TouchscreenYes
Number of simultaneous touchpoints40
Panel typeTFT
Touch technologyMulti-touch
Touchscreen technologyProjected capacitive system
Display brightness382 cd/m²
Audio
Built-in speaker(s)Yes
RMS rated power10 W
Performance
Built-in speaker(s)Yes
RMS rated power10 W
Mean time between failures (MTBF)50000 h
Built-in microphoneNo
Built-in cameraNo
AMD FreeSyncNo
NVIDIA G-SYNCNo
Management features
On Screen Display (OSD)Yes
Network
Ethernet LAN (RJ-45) ports1
Multimedia
Number of speakers2
Built-in speaker(s)Yes
RMS rated power10 W
Built-in microphoneNo
Built-in cameraNo
Design
CertificationUL 62368-1 FCC cUL, IC CB (IEC/EN60950-1+IEC/EN62368-1) CE VCCI RCM CCC, RoHS IK07, UL60950
Product colourBlack
Mean time between failures (MTBF)50000 h
Camera
Built-in cameraNo
Ports & interfaces
Built-in USB hubYes
Headphone outYes
HDMI ports quantity2
DisplayPorts quantity1
HDCPYes
Headphone outputs1
HDMIYes
HDMI version1.4
DisplayPort version1.2
USB Touch ports quantity1
USB Touch portYes
Ethernet LAN (RJ-45) ports1
Technical details
Height (without stand)45.9 cm
Depth (without stand)5.72 cm
Width (without stand)76.5 cm
Placement supportedHorizontal/Vertical
Mean time between failures (MTBF)50000 h
HDMIYes
Display viewable area (HxV)698.4 x 392.9 mm
Built-in microphoneNo
Product colourBlack
Sustainability certificatesENERGY STAR
Power supply typeAC
Touchscreen typeMulti-user
TouchscreenYes
Number of simultaneous touchpoints40
Ergonomics
Wall mountableYes
VESA mountingYes
Panel mounting interface400 x 400 mm
On Screen Display (OSD)Yes
Power
Power supply typeAC
AC input voltage100-240 V
AC input frequency50/60 Hz
Power consumption (standby)1.43 W
Power consumption (typical)44 W
Power consumption (off)0.29 W
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%
Packaging content
Cables includedAC, HDMI, USB
Weight & dimensions
Height (without stand)45.9 cm
Depth (without stand)5.72 cm
Width (without stand)76.5 cm
Weight (without stand)11.9 kg
Package width890 mm
Package depth160 mm
Package height640 mm
Package weight15.3 kg
Packaging data
Package width890 mm
Package depth160 mm
Package height640 mm
Package weight15.3 kg
Cables includedAC, HDMI, USB
Sustainability
Sustainability certificatesENERGY STAR
Logistics data
Harmonized System (HS) code85285210
Other features
Height (without stand)45.9 cm
Depth (without stand)5.72 cm
Width (without stand)76.5 cm
HDMIYes
Power supply typeAC
Placement supportedHorizontal/Vertical
Mean time between failures (MTBF)50000 h
Display viewable area (HxV)698.4 x 392.9 mm
Ethernet LAN (RJ-45) ports1
Touchscreen typeMulti-user
TouchscreenYes
Number of simultaneous touchpoints40
Certificates
CertificationUL 62368-1 FCC cUL, IC CB (IEC/EN60950-1+IEC/EN62368-1) CE VCCI RCM CCC, RoHS IK07, UL60950
