£445.28 £371.06

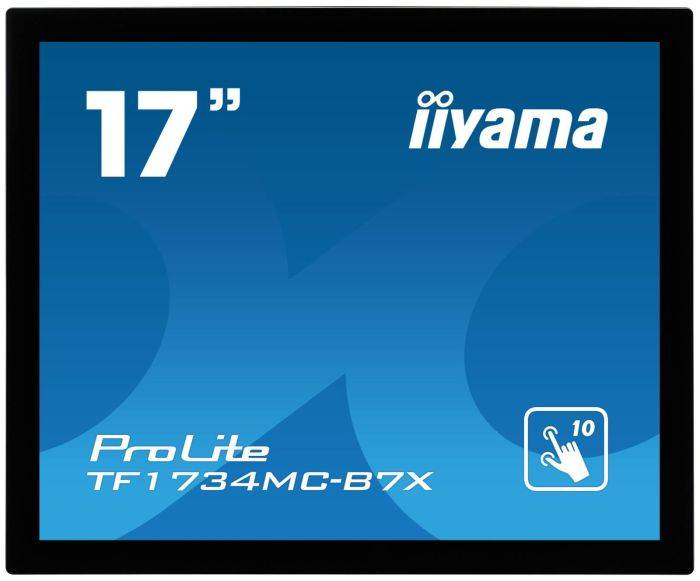

iiyama ProLite TF1734MC-B7X touch screen monitor 43.2 cm (17") 1280 x 1024 pixels Multi-touch Black

£445.28 £371.07
In stock
SKU

TF1734MC-B7X

Need help ordering? Call 0208 200 2000

17", 1280 x 1024, TN LED, 1000:1, Touch, projective capacitive, VGA, HDMI, DisplayPort, USB, IP65, 369 x 307 x 47.5mm, 3.6kg


17’’ 10pt touch Open Frame monitor with Touch Through-Glass function
The ProLite TF1734MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant from the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail.

TOUCH THROUGH-GLASS
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

SCRATCH RESISTANCE Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.

IP
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure from any direction.

OPEN FRAME BRACKETS
This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.
More Information
SKU TF1734MC-B7X
EAN 4948570118397
Specification
Display
HDCPYes
Screen shapeFlat
Display number of colours16.78 million colours
Native aspect ratio5:4
HD typeSXGA
Display technologyLED
Viewing angle, horizontal170°
Viewing angle, vertical170°
Pixel pitch0.264 x 0.264 mm
Horizontal scan range31.4 - 80 kHz
Aspect ratio5:4
Viewable size, horizontal27.1 cm
Viewable size, vertical33.8 cm
Viewable size diagonal43 cm
Supported graphics resolutions1280 x 1024 (SXGA)
Supported video modes1024p
Display resolution1280 x 1024 pixels
Response time5 ms
Display diagonal43.2 cm (17")
Contrast ratio (typical)1000:1
TouchscreenYes
Number of simultaneous touchpoints10
Panel typeTN
Touch technologyMulti-touch
Touchscreen technologyProjected capacitive system
Display brightness350 cd/m²
Performance
Built-in microphoneNo
Built-in cameraNo
AMD FreeSyncNo
NVIDIA G-SYNCNo
Management features
On Screen Display (OSD)Yes
Number of OSD languages7
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Plug and PlayYes
Multimedia
Built-in microphoneNo
Built-in cameraNo
Design
CertificationCE, EAC, RoHS support, ErP, WEEE, cULus, REACH
Product colourBlack
International Protection (IP) codeIP65
Glass thickness6 mm
Camera
Built-in cameraNo
Ports & interfaces
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DisplayPorts quantity1
HDCPYes
HDMIYes
USB requiredYes
USB Touch ports quantity1
USB Touch portYes
Technical details
Height (without stand)30.7 cm
Depth (without stand)4.75 cm
Width (without stand)36.9 cm
Placement supportedHorizontal/Vertical
HDMIYes
Display viewable area (HxV)338 x 270 mm
Built-in microphoneNo
Product colourBlack
Power supply typeDC
TouchscreenYes
Number of simultaneous touchpoints10
Ergonomics
VESA mountingYes
On Screen Display (OSD)Yes
Number of OSD languages7
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Plug and PlayYes
Power
Power supply typeDC
Power consumption (standby)1.5 W
Power consumption (typical)13 W
Power consumption (off)0.3 W
Energy efficiency scaleA to G
AC adapter output voltage12 V
Energy efficiency class (SDR)E
Energy consumption (SDR) per 1000 hours11 kWh
Packaging content
Cables includedAC, DisplayPort, HDMI, USB
Weight & dimensions
Height (without stand)30.7 cm
Depth (without stand)4.75 cm
Width (without stand)36.9 cm
Weight (without stand)3.6 kg
Package width455 mm
Package depth145 mm
Package height387 mm
Package weight4.9 kg
Packaging data
Package width455 mm
Package depth145 mm
Package height387 mm
Package weight4.9 kg
Cables includedAC, DisplayPort, HDMI, USB
Logistics data
Harmonized System (HS) code85285210
Other features
Height (without stand)30.7 cm
Depth (without stand)4.75 cm
Width (without stand)36.9 cm
HDMIYes
Energy efficiency scaleA to G
Power supply typeDC
Placement supportedHorizontal/Vertical
Display viewable area (HxV)338 x 270 mm
Connection to PCYes
TouchscreenYes
Number of simultaneous touchpoints10
Certificates
CertificationCE, EAC, RoHS support, ErP, WEEE, cULus, REACH
