£218.68 £182.23

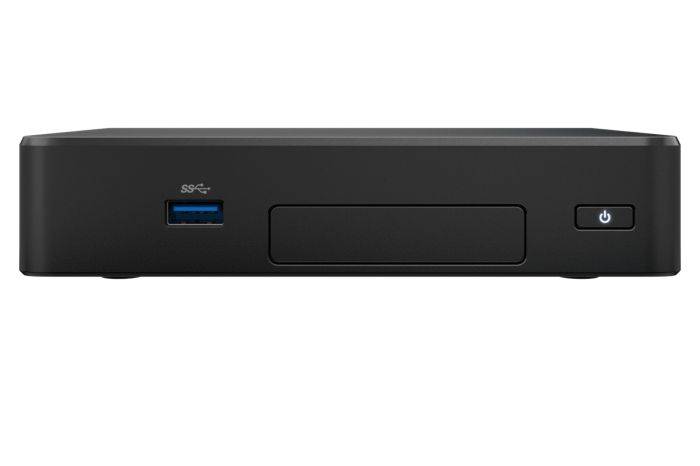

Intel NUC 8 Rugged DM BKNUC8CCHKRN2 Celeron N3350 4GB 64GB Win 10

£218.69 £182.24
Out of stock
SKU

BKNUC8CCHKRN2

Intel Celeron N3350 (2MB Cache, 1.1GHz), 4GB LPDDR3-SDRAM, 64GB eMMC, Intel HD Graphics 500, LAN, WLAN, Bluetooth


Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.

Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.

Intel® HD Audio Technology
Intel® High Definition Audio (Intel® HD Audio) is capable of playing back more channels at higher quality than previous integrated audio formats. In addition, Intel® HD Audio has the technology needed to support the latest and greatest audio content.

Intel® Platform Trust Technology (Intel® PTT)
Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.
More Information
SKU BKNUC8CCHKRN2
EAN 5032037220477
Specification
Processor
Processor operating modes64-bit
Processor lithography14 nm
Processor codenameApollo Lake
Maximum internal memory supported by processor8 GB
Memory types supported by processorLPDDR4-SDRAM, DDR3L-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor1866,2400 MHz
Tjunction105 °C
Thermal Design Power (TDP)6 W
Processor seriesIntel Celeron N3000 series
PCI Express configurations1x2+2x1, 4x1
Maximum number of PCI Express lanes6
Processor cache typeL2
Scenario Design Power (SDP)4 W
Conflict-Free processorYes
Processor cache2 MB
Processor frequency1.1 GHz
Processor modelN3350
Number of processors installed1
Processor manufacturerIntel
Processor boost frequency2.4 GHz
System bus rate5 GT/s
Processor socketBGA 1296
Processor threads2
Processor cores2
PCI Express slots version2.0
Processor familyIntel® Celeron® N
Memory
ECCNo
Internal memory4 GB
Maximum internal memory4 GB
Internal memory typeLPDDR3-SDRAM
Memory channelsDual-channel
Storage
Storage mediaeMMC
Optical drive typeNo
Card reader integratedNo
Total storage capacity64 GB
SSD form factorM.2
Embedded storage capacity65536 MB
Graphics
Discrete graphics cardNo
On-board graphics card dynamic frequency (max)650 MHz
On-board graphics card burst frequency650 MHz
On-board graphics card base frequency200 MHz
Maximum on-board graphics card memory8 GB
Number of displays supported (on-board graphics)3
Number of execution units12
On-board graphics card ID0x5A85
On-board graphics cardNo
Discrete graphics card modelNot available
On-board graphics card modelIntel® HD Graphics 500
Optical drive
Optical drive typeNo
Network
Ethernet LANYes
Wi-FiYes
BluetoothYes
Bluetooth version4.2
Wi-Fi standardsWi-Fi 5 (802.11ac)
Wi-Fi data rate (max)433 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000Base-T(X)
WLAN controller modelIntel Dual Band Wireless-AC 3168
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Antenna type1x1
LAN controllerIntel® I211-AT
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
HDMI version2.0
USB 2.0 ports quantity2
Microphone inNo
HDMI ports quantity1
Ethernet LAN (RJ-45) ports1
DVI portNo
DC-in jackYes
On/off buttonYes
M.2 card slot (wireless)2230 (E-key)
M.2 card slot (storage)2280 (M-key)
Serial port via internal headerYes
Graphics outputHDMI 2.0, HDMI 1.4, 4-lane eDP 1.4
Expansion slots
PCI Express slots version2.0
Technical details
Intel 64Yes
Intel® Wireless Display (Intel® WiDi)No
Product typeMini PC
Trusted Platform Module (TPM)No
Intel® Small Business Advantage (Intel® SBA)No
Intel® Turbo Boost TechnologyNo
Intel Smart Connect TechnologyNo
Intel® Quick Sync Video TechnologyYes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Anti-Theft Technology (Intel® AT)No
Product colourBlack
Chassis typemini PC
Motherboard form factorNUC
Intel® Smart Response TechnologyNo
ARK ID214634
Design
Product colourBlack
Chassis typemini PC
Intel® vPro™ Platform EligibilityNo
Performance
Embedded options availableYes
Number of displays supported2
ARK ID214634
Product typeMini PC
Trusted Platform Module (TPM)No
Motherboard form factorNUC
Harmonized System (HS) code84715000
Export Control Classification Number (ECCN)5A992C
Commodity Classification Automated Tracking System (CCATS)G157815L2
Additional headersFront_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
StatusLaunched
Software
Compatible operating systemsWindows 10, 64-bit*
Processor special features
Embedded options availableYes
Enhanced Intel SpeedStep TechnologyYes
Thermal Monitoring TechnologiesYes
Intel® OS GuardYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Trusted Execution TechnologyNo
Intel Stable Image Platform Program (SIPP)No
Intel® Secure KeyYes
Intel® InTru™ 3D TechnologyNo
Intel® Insider™No
Intel Clear Video TechnologyYes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® AES New Instructions (Intel® AES-NI)Yes
Idle StatesYes
Execute Disable BitYes
Intel Enhanced Halt StateYes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
UARTYes
Processor package size24 x 31 mm
Intel Virtualization Technology for Directed I/O (VT-d)Yes
CPU configuration (max)1
Intel Smart Idle TechnologyNo
Intel Secure BootYes
Intel Virtualization Technology (VT-x)Yes
Intel Stable Image Platform Program (SIPP) version0.00
Intel Smart Response Technology version0.00
Intel Smart Connect Technology version0.00
Intel Small Business Advantage (SBA) version0.00
Intel Secure Key Technology version1.00
Intel Secure Boot Technology version1.00
Intel Rapid Storage TechnologyNo
Intel Identity Protection Technology version1.00
Conflict-Free processorYes
Processor ARK ID95598
Intel 64Yes
Intel® Wireless Display (Intel® WiDi)No
Intel® Small Business Advantage (Intel® SBA)No
Intel® Turbo Boost TechnologyNo
Intel Smart Connect TechnologyNo
Intel® Quick Sync Video TechnologyYes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Anti-Theft Technology (Intel® AT)No
Intel® Smart Response TechnologyNo
Intel® Platform Trust Technology (Intel® PTT)Yes
Intel® vPro™ Platform EligibilityNo
Power
DC input voltage12 - 24 V
Weight & dimensions
Width154 mm
Depth108 mm
Height32 mm
Packaging content
Display includedNo
Power cord includedYes
Processor includedIntel® Celeron® Processor N3350 (2M Cache, up to 2.4 GHz)
Other features
Number of displays supported2
ARK ID214634
USB ports quantity4
Trusted Platform Module (TPM)No
On-board graphics cardNo
Processor manufacturerIntel
Wi-Fi data rate (max)433 Mbit/s
Form factor3.5” SBC (146mm x 101.6mm)
Ethernet interface typeGigabit Ethernet
Compatible operating systemsWindows 10, 64-bit*
Harmonized System (HS) code84715000
Export Control Classification Number (ECCN)5A992C
Commodity Classification Automated Tracking System (CCATS)G157815L2
Additional headersFront_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
