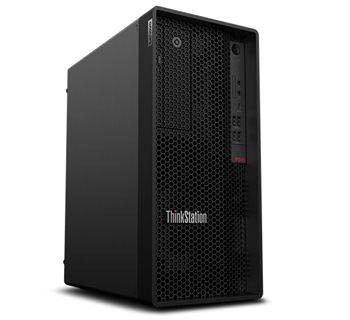

Lenovo ThinkStation P340 Tower 30DH00HKUK Xeon W-1250P 16GB 512GB SSD DVDRW Win 10 Pro

Name: Lenovo ThinkStation P340 Tower 30DH00HKUK Xeon W-1250P 16GB 512GB SSD DVDRW Win 10 Pro
Brand: Lenovo
SKU: 30DH00HKUK
Price: 1699.20 GBP
Availability: OutOfStock
Rating: 4.86 (1228 reviews)

£1,699.20 £1,416.00

Out of stock

SKU

30DH00HKUK

Intel Xeon W-1250P (6C/12T, 4.1/4.8GHz, 12MB), 1x 16GB UDIMM DDR4-2933 ECC, 1x 512GB SSD M.2 2280 PCIe NVMe Opal, Intel UHD Graphics P630, Windows 10 Pro 64 for Workstations

Product Details

This workstation is a workhorse
Cutting-edge performance comes standard on the ThinkStation P340 Tower. The latest Intel® Xeon® or Intel® Core™ vPro™ processors fuel even the most demanding tasks. Add in dual M.2 PCIe storage with RAID for a powerful combination.

VR Ready
The ThinkStation P340 Tower workstation computer is VR ready, supporting up to NVIDIA® Quadro RTX™ 5000 graphics. This entry-level system lets you create truly immersive virtual reality experiences at a low cost.

Multiple display support
With up to three DP ports and support for up to 11 independent displays, the P340 Tower workstation is a great choice for CAD design, finance, health care, education, and more. It boasts ISV certifications from all the major vendors, including Autodesk®, Bentley®, Dassault®, PTC®, and Siemens®.

Rugged, secure, & expandable
Lenovo’s legendary reliability ensures the P340 Tower workstation is built to last. Your data will remain safe, too: The integrated suite of ThinkShield security solutions includes discrete Trusted Platform Module (dTPM) to encrypt your data. And easy component access means you can expand as your business grows.

Technical Specification

More Information

SKU

30DH00HKUK

EAN

0195235606834

Specification

Processor
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Comet Lake
Maximum internal memory supported by processor	128 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Tjunction	100 °C
Thermal Design Power (TDP)	125 W
PCI Express configurations	1x16, 2x8, 1x8+2x4
Maximum number of PCI Express lanes	16
Configurable TDP-down	95 W
Memory bandwidth supported by processor (max)	41.6 GB/s
Processor cache type	Smart Cache
Configurable TDP-down frequency	3.8 GHz
Processor cache	12 MB
Processor frequency	4.1 GHz
Processor model	W-1250P
Number of processors installed	1
Processor manufacturer	Intel
Processor boost frequency	4.8 GHz
System bus rate	8 GT/s
Processor socket	LGA 1200 (Socket H5)
Processor threads	12
Processor cores	6
PCI Express slots version	3.0
Processor family	Intel Xeon W
Memory
ECC	Yes
Memory layout (slots x size)	1 x 16 GB
Internal memory	16 GB
Maximum internal memory	128 GB
Memory slots	4x DIMM
Internal memory type	DDR4-SDRAM
Memory clock speed	2933 MHz
Memory channels	Dual-channel
Storage
Storage media	SSD
Number of storage drives installed	1
Optical drive type	DVD±RW
SSD interface	NVMe
SSD capacity	512 GB
Number of SSDs installed	1
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC
Total storage capacity	512 GB
SSD form factor	M.2
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card base frequency	350 MHz
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card OpenGL version	4.5
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x9BC6
On-board graphics card family	Intel® UHD Graphics
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel UHD Graphics P630
Optical drive
Optical drive type	DVD±RW
Network
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 2.0 ports quantity	2
Serial ports quantity	1
Microphone in	Yes
Line-out	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
DVI port	No
DisplayPorts quantity	2
Expansion slots
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	2
PCI Express slots version	3.0
Technical details
Intel 64	Yes
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Intel® Turbo Boost Technology	2.0
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Product colour	Black
Chassis type	Tower
Placement supported	Vertical
Cable lock slot	Yes
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Design
Volume	17 L
Product colour	Black
Chassis type	Tower
Placement supported	Vertical
Cable lock slot	Yes
Performance
Embedded options available	No
Password protection	Yes
Password protection type	Power on, Supervisor
Product type	Workstation
Trusted Platform Module (TPM)	Yes
Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro for Workstations
Processor special features
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Thermal Monitoring Technologies	Yes
Intel® OS Guard	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	Yes
Intel® Secure Key	Yes
Intel® InTru™ 3D Technology	Yes
Intel Clear Video Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Idle States	Yes
Execute Disable Bit	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Thermal solution specification	PCG 2015D
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Scalability	1S
Processor package size	37.5 x 37.5 mm
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Processor ARK ID	199340
Intel 64	Yes
Intel® Turbo Boost Technology	2.0
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Power
80 PLUS certification	80 PLUS Platinum
Power supply	500 W
Operational conditions
Operating altitude	-15.2 - 3048 m
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	10 - 35 °C
Non-operating altitude	-15.2 - 10668 m
Sustainability
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
Weight & dimensions
Volume	17 L
Width	170 mm
Depth	315.4 mm
Height	376 mm
Packaging content
Mouse included	Yes
Keyboard layout	QWERTY
Display included	No
Keyboard included	Yes
Other features
Trusted Platform Module (TPM)	Yes
On-board graphics card	Yes
Processor manufacturer	Intel
