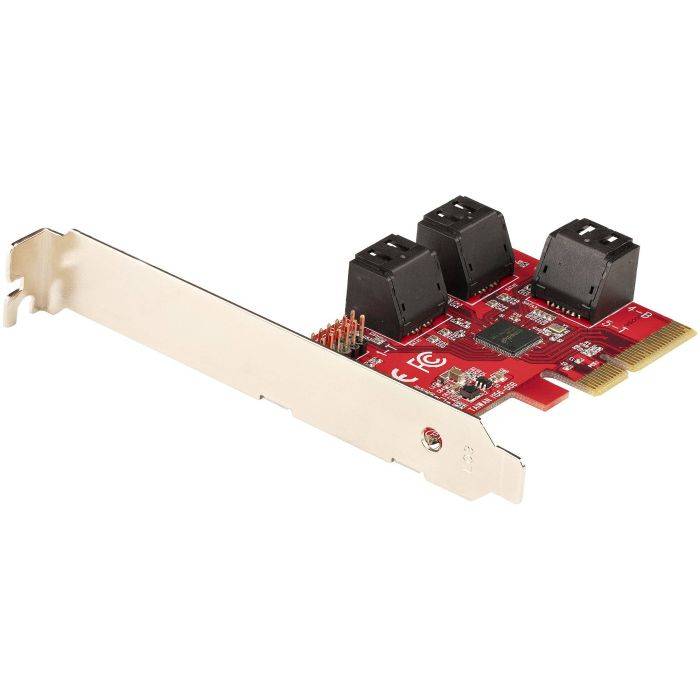

StarTech.com SATA PCIe Card - 6 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA Connectors - ASM1166 Non-Raid - PCI Express to SATA Converter

£70.24 £58.53
Out of stock
SKU

6P6G-PCIE-SATA-CARD

StarTech.com SATA PCIe Card - 6 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA Connectors - ASM1166 Non-Raid - PCI Express to SATA Converter (6P6G-PCIE-SATA-CARD)
SATA III (6Gbps) | PCI Express 3.0 | PCIe x4 Slot | 6x SATA Connectors | 2-Year WarrantyThis 6-port SATA III (6Gbps) controller enables you to add six SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x4 card slot. The card supports SATA III and PCI-Express 3.0 Specifications.ASM1166 to Deliver 6-Port SATA 6Gbps PerformanceFeaturing the ASM1166 controller, this SATA card enables the connection of six high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via six individual SATA ports located on the card (SATA cables sold separately).Wide CompatibilityThe controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). The card also supports port multiplier, giving you the ability to connect multiple drives to a single SATA port (additional hardware required, sold separately).To further improve motherboard compatibility the card does not have a built-in RAID controller, but fully supports the use of software RAID. Plus, with support for PCIe 3.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1/2) at lower performance.Hassle-Free InstallationThe SATA controller card features plug-and-play installation and can be installed in full-profile and low-profile computer systems with a full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included. The card also supports storage software data management systems such as Storage Spaces (Microsoft), RAID Assistant (MacOS) and mdraid/mdadm (Linux), for hassle-free setup, partitioning and software RAID array building.6P6G-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.The StarTech.com Advantage
More Information
SKU 6P6G-PCIE-SATA-CARD
EAN 0065030893749
Specification
Ports & interfaces
InternalYes
Port multiplierYes
Output interfaceSATA
SATA revision3.0
Internal SATA ports quantity6
Host interfacePCIe
Technical details
ChipsetASMedia - ASM1166
Data transfer rate (max)6 Gbit/s
Performance
Port multiplierYes
ChipsetASMedia - ASM1166
Data transfer rate (max)6 Gbit/s
Product colourRed
TRIM supportYes
S.M.A.R.T. supportYes
Harmonized System (HS) code84733020
Colour
Product colourRed
Design
InternalYes
Product colourRed
Features
ChipsetASMedia - ASM1166
Data transfer rate (max)6 Gbit/s
TRIM supportYes
S.M.A.R.T. supportYes
Harmonized System (HS) code84733020
Operational conditions
Operating temperature (T-T)0 - 85 °C
Storage temperature (T-T)-25 - 85 °C
Operating relative humidity (H-H)20 - 80%
System requirements
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2012 R2, Windows Server 2016, Windows Server 2019
Weight & dimensions
Width54 mm
Depth82 mm
Height16 mm
Weight75 g
Package width142 mm
Package depth170 mm
Package height30 mm
Package weight120 g
Packaging data
Mounting brackets includedYes
Package width142 mm
Package depth170 mm
Package height30 mm
Package weight120 g
Quick installation guideYes
Logistics data
Products per master (outer) case60 pc(s)
Master (outer) case width500 mm
Master (outer) case length370 mm
Master (outer) case height500 mm
Packaging content
Mounting brackets includedYes
Quick installation guideYes
Other features
ChipsetASMedia - ASM1166
Manufacturer StarTech.com
